Easy set-up

Check out the easy step by step tutorial of how to set up a Hercules pop up gazebo. The basic structure set-up or fold-down may be in just 60 seconds due to their concertina scissor action and easy to transport. In this video, we show a 3m x 3m gazebo being assembled.

Weatherproof Gazebo

Our polyester fabrics come in a range of colours, and each is 100% waterproofed, fire-resistant, and has guaranteed UV protection to UPF 50+. Our range of frame offers dependable sturdiness in all situations. You will feel confident that you will be comfortable, safe and proud of it.

uvtreated waterproof ads

EXCLUSIVE DESIGN TO INCREASE GAZEBO LONGEVITY

1. Pro Velcro Wall: 50mm Full Velcro attachable sidewalls

2. Pro Corner Canopy: Double PVC layer reinforcement at each corner in and out

3. Strong arms with two-rib reinforcement for extra strength (This features are for Hex 45A & Pro series)

Our Gazebo range comparison


Series

Series 30

HEX 45S

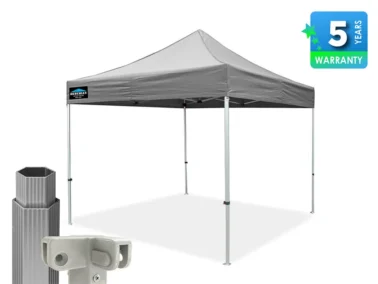

HEX45A

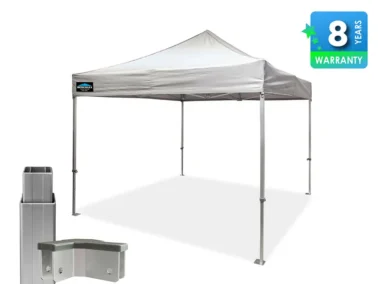

PRO37

PRO40

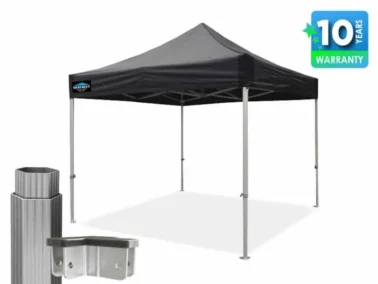

PRO57

Strength Light Strength Moderate Strength Moderate Strength High Strength Great Strength Super Strength
Frame Type

Powder Coated Steel The steel

with powder coat finish for rust and corrosion resistant.

Anti-rust & corrosion

Light Strength

Light Weight

Powder Coated Steel The steel

with powder coat finish for rust and corrosion resistant.

Anti-rust & corrosion

Moderate Strength

Heavy Weight

T-6063 Aluminium Alloy

This alloy has a good surface finish, high corrosion resistance.

Anti-rust & corrosion

Moderate Strength

Ultra Light Weight

6005 Aluminium Alloy

This is a high strength alloy with excellent corrosion resistance.

Anti-rust & corrosion

High Strength

Medium Weight

6005 Aluminium Alloy

This is a high strength alloy with excellent corrosion resistance.

Anti-rust & corrosion

Great Strength

Heavy Weight

6005 Aluminium Alloy

This is a high strength alloy with excellent corrosion resistance.

Anti-rust & corrosion

Super Strength

Heavy Weight

Outer Leg Dimension

30mm Square, 0.8mm Thick

45mm Hex. , 1.0mm Thick 45mm Hex. , 1.5mm Thick 37mm Square, 2.0mm Thick 40mm Square, 2.0mm Thick 57mm Hex, 2.0mm Thick
Truss Bar Dimension 25mmx 12 mm 25mmx 12.5 mm 25mmx 12.5mm 28mmx 13mm 32mmx16mm 35mmx18mm
Spring Tensioner NO NO YES YES YES YES
Joints
Footplate & Height Adjuster
Warranty 2-Year Manufacturer Warranty 3-Year Manufacturer Warranty 3-Year Manufacturer Warranty 6-Year Manufacturer Warranty 8-Year Manufacturer Warranty 10-Year Manufacturer Warranty
Maximum Height(Ground to peak) 2x2m: 3.00m/2.5×2.5m: 3.20m/3x3m to 3x6m: 3.35m 2.5×2.5m: 3.00m/3x3m to 3x6m: 3.30m 2.5×2.5m: 3.00m/3x3m to 3x6m: 3.30m 2.5×2.5m: 3.00m/3x3m to 3x6m: 3.30m 3x3m to 3x6m: 3.30m 3x3m to 3x6m: 3.30m/4x4m to 4x8m: 3.76m
Adjustable Height(Head  clear) 1.57m to 2.08m 1.57m to 2.0m 1.57m to 2.0m 1.57m to 2.0m 1.57m to 2.0m 1.57m to 2.1m
Size Options & weight of the frame

2m x 2m 15kg

2.5m x 2.5m 18kg

3m x 3m 22kg

3m x 4.5m 25kg

3m x 6m 35kg

2.5m x 2.5m 25kg

3m x 3m 30kg

3m x 4.5m 39kg

3m x 6m 54kg

2.5m x 2.5m 15kg

3m x 3m 16kg

3m x 4.5m 21kg

3m x 6m 30kg

*light weight

2.5m x 2.5m 23kg

3m x 3m 25kg

3m x 4.5m 33kg

3m x 6m 44kg

3m x 3m 28kg

3m x 4.5m 38kg

3m x 6m 48kg



3m x 3m 31kg

3m x 4.5m 41kg

3m x 6m 57kg

4m x 4m 41kg

4m x 6m 59kg

4m x 8m 67kg



Canopy & Wall Fabric
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost
  • PVC Coated 320gsm polyester
  • Upgrade 100%PVC at additional cost

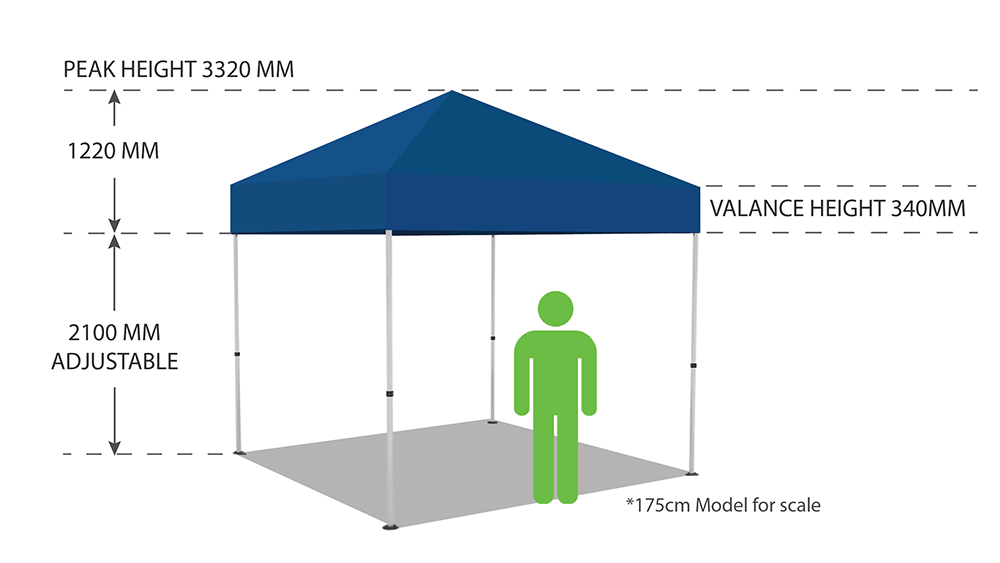

Marquee height dimesion

Marquee Capacity

Guest configuration

Size Range Standing or Theatre (Approx.)
2M X 2M 4-5 People
2.5M X 2.5M 6-7 People
3M X 3M 8-9 People
3M X 4.5M 13-14 People
3M X 6M 17-18 People
4M X 4M 15-16 People
4M X 6M 23-24People
4M X 8M 30-32People
